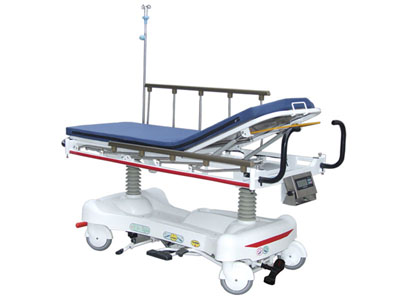

Hydraulic Patient Trolley with Weighing Scales is the ideal choice for Emergency, OR, PACU or ASC use. This stretcher offers patient and caregivers excellent mobility, comfort and quality.

  Mobility: s innovative steering plus system allows stretcher easy to stop and steer. In addition, it prevents vibrations by self adjustment. Larger wheels of 8‵‵ make the movement more stable and comfortable. A standard redundant-locking, four-wheel braking system provided for a strong, stable platform.

  Comfort:fowler feature provides the caregiver with easier head section adjustment. Our innovative air mattress give patient comfortable feeling to overcome pressure ulcers due to overcrowding during extended periods.

  Quality: Our reinforced stretcher frames are made of heavy-gauge, cold rolled steel after twice phosphorizations for long-lasting use life. PP extra strong undercarriage, good capacity, easy to clean.

focused on patient and caregiver safety, we supply stretchers at affordable price and good quality to cover most of patients and caregiver.

After test, capacity is up to 550lb.

Instruction:

1.       550lb weight capacity

2.       Low height(22.5‵‵) for safe stretcher ingress and egress-best in class

3.       Radiolucent deck(back section)

4.       Fowler mechanism provides easier articulation of the head section

5.       Hand brake ?

6.       Integrated dual display scale

7.       Ergonomic push handles

8.       IV pole holders on 4 corners, IV pole, drainage hook

9.       Integrated oxygen holder?

10.   Steering plus system

11.   Redundant-locking, 4 wheels brakes

?optional feature

Material:

1.     The frame is steel with coating by twice electrostatic spray

2.      Power-packer brand from Actuant hydraulic oil pump supply stable power source for hydraulic hospital stretcher..

3.     Back board is made of American electrotyped board with X-ray cassette.

4.     Once injection PP undercarriage

5.     Stainless steel handrails

Technical Specifications:

Maximum weight limit.550lbs(249.5kg)

Low position(floor to top of surface)...22.5‵‵(57cm)

   High position(floor to top of surface)...35‵‵(88.9cm)
  Overall length.83‵‵(210.8cm)
  Overall width(sideraisl up)..32‵‵(81.3cm)
  Overall width(siderails stored)....26.5‵‵(67.3cm)
  Siderail length.47‵‵(119.4cm)
  Siderail height above mattress/surface.14‵‵(35.6cm)
  Mattress size..24.5‵‵(62.3cm)x75‵‵(190.5cm)
  Maximum head elevation.....90^o
  Maximum foot elevation.....45^o
  Maximum Trend/Reverse Trend18^o
  Floor to base clearance3.5‵‵(8.9cm)
  Caster size8‵‵(20.3cm)
