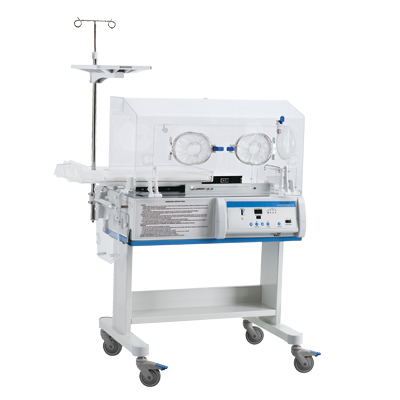

Infant incubator (Order Number: IIC0430)

Brief Introduction:

  Air mode control, set temperature and air temperature are displayed separately;

  Natural air flow humidity

  Failure alarm indication;

  RS-232 connector

   Configured with fixed Neonate Bilirubin Phototherapy Equipment (with blue fluorescence lamps)

  DC motor

Standard Configuration:

   Has the Neonate bilirubin phototherapy equipment (fixed model)

Optional Configuration:

  >37℃ temperature override mode foundation, Baby mode, Configured with fixed neonate bilirubin phototherapy equipment (with LED blue light) and SPO2

Specification:

  Power requirement: AC220V-230V/50Hz or AC110-120V/50-60Hz, 850VA

  Mode of control: Air mode control by micro-computer

  Air temperature control range: 25℃ -37℃ (override mode: 37℃ -39℃ is optional)

  The temperature difference between incubator temperature and average incubator temperature(under steady temperature condition)=0.5℃

  Temperature uniformity=0.8℃

  Noise inside hood: 45dB(A)

  Failure alarm: over temperature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, system alarm and so on.

Environmental temperature:

  Operating range: 20 ℃ -30℃ (Set temperature should be higher 3℃ than the environment temperature)

  Ambient air movement rate: < 0.3m/s

Product Packaging:

  Packing: each unit is packed into one carton

  Dimension: 1085mm x 640mm x 1075mm

  Gross Weight: 72Kg

  83Kg
