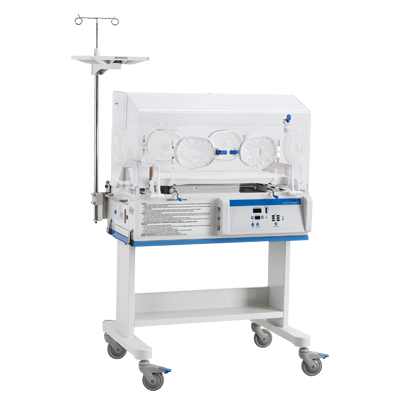

Infant incubator (Order Number: IIC0431)

Brief Introduction:

  Air mode control, set temperature and air temperature are displayed separately;

  Natural air flow humidity

  Inclination of bassinet is adjustable

  Failure alarm indication

  RS-232 connector

  Oxygen input interface

  Configured with fixed Neonate Bilirubin Phototherapy Equipment (with blue fluorescence lamps);

  DC motor

Standard  configuartion:

  The hood ,the base ,the controller ,I.V pole ,shelf.

  Featured with Neonate bilirubin phototherapy equipment (fixed model)

Optional parts:

  > 37℃ temperature override mode function, vertical height adjustment stand(VHA stand), Weighing system, Neonate bilirubin phototherapy equipment (fixed model), Baby mode and SPO2.

Specification:

  Power requirement: AC220V-230V/50Hz or AC110-120V/50-60Hz, 850VA

  Mode of control: Air mode control

  Air temperature control range: 25℃ -37℃ (override mode: 37-39℃ is optional)

  The temperature difference between incubator temperature and average incubator temperature(under steady temperature condition)≤0.5℃

  Temperature uniformity: 0.8℃ (mattress is on the horizontal position)

  Inclination of the bassinet: ∓ 12

  Noise inside hood: 45dB(A)

  Failure alarm: over temperature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, system alarm and so on.

  The average value of total irradiance for bilirubin Ebi max of phototherapy equipment:

  ≥ 640pW/cm2 ( XHZ-90 )

  ≥ 1300pW//cm2 ( HBXHZ-90L )

  Built-in timer range: 0-9999 hrs 59min

  Accuracy of weight display: ∓ 1% (equipped weighing system)

Environmental temperature:

  Operating range: 20 ℃ -30℃ (Set temperature should be higher 3℃ than the environment temperature)

  Ambient air movement rate: <0.3m/s

Product Packaging:

  Package: each unit is packed into one carton

  Dimension: 1085mm x 640mm x 1120mm

  Gross Weight: 80Kg

  90Kg
