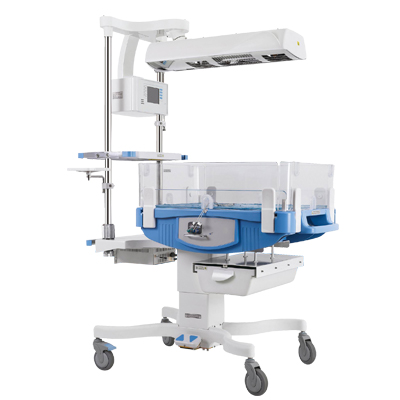

Infant radiant warmer (Order Number: CIR0440)

Brief Introduction:

  Three control modes: Pre-warm mode control, manual mode control and baby mode control by micro-computer;

  The information can be stored, consulted and indicated by the LCD display screen;

  Failure alarm indication;

  The angle of warmer module is adjustable horizontally;

  Inclination of the bassinet is adjustable;

  The panels around bassinet can be turned outward;

  Mattress is heatable and temperature is controllable;

  With LED phototherapy function;

  APGAR timer;

  Vertical height adjustment (VHA) stand.

Standard Configuration:

  Main body (including the warmer module, controller, bassinet, main column and VHA stand), skin temperature sensor, J.V. Pole, mattress, tray and panels

Specification:

  Power requirement: AC22OV-230V/5OHz or AC11O-120V/50-6OHz, 900VAMode of control: Pre-warm mode, manual mode and baby mode are controlled by micro - computer

  Baby mode temperature control range: 34.5-37.5℃

  Accuracy of skin temperature sensor: ∓ 0.2℃

  Temperature uniformity of mattress: ? 2℃

  Mattress heating control range: 25-38℃

  Accuracy of mattress temperature display: ∓ 0.7℃

  Angle of warmer module: ∓ 60^o

  Inclination of bassinet: The Max. angle on trendelenburg is 15^o, on reverse trendelenburg is 20^o

  APGAR timer: audible and visible alarm when the device runs to 50"~ 1', 4' 50" ~5', 9' 50"~ 10'

  Failure alarm: over temperature alarm, deviation alarm, sensor failure alarm, power failure alarm, setting alarm, checking alarm and so on.

  Max. bilirubin radiation on the mattress effective range: 1mW/cm2

  Average value general bilirubin radiation of on the mattress effective range:

  ∓ 0.8mW/cm2

  Bilirubin uniformity of radiating on the mattress effective range: >0.4

Environmental temperature:

  Operating range: 18 ℃ -30℃

  Ambient air movement rate: <O.3m/s

Product Packaging:

  Package: each unit is packed into one carton

  Dimension: l500mmx8l0mmxl475mm

  Gross Weight: 250 Kg
